CAPPUCCI IN SILICONE IT

TCP-J-SI

CONTATTI

DOWNLOADS TCP-J-SI Data Sheet

Ordine di campionarura

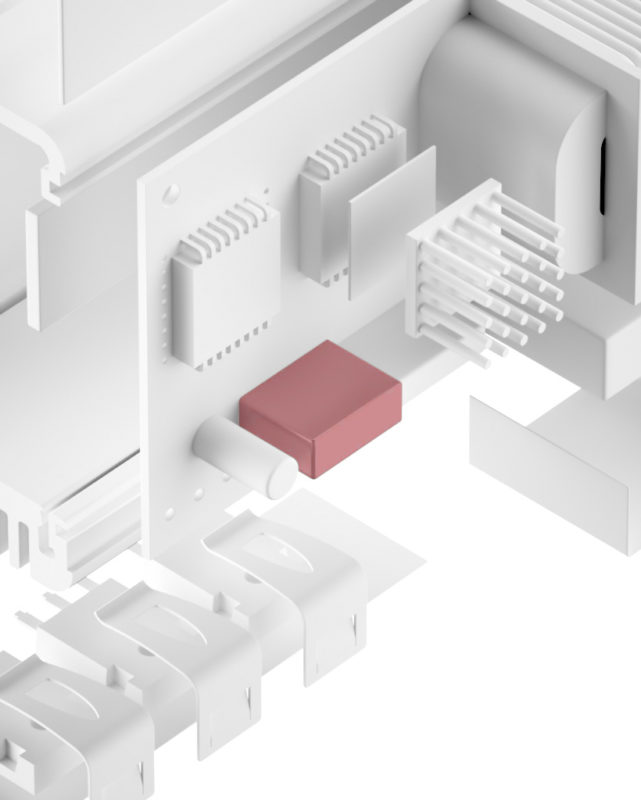

TCP-J-SI is a thermally conductive silicone cap for an optimised thermal coupling between electronic packages and heat sinks which provides for a reliable electrical all-around insulation. Through the specific formulation and filling with thermally conductive ceramic particles a high thermal conductivity is reached. Its conformal surface structure guarantees a very good compliance to the contact surfaces. Thus the total thermal resistance is minimised.

PROPRIETÀ

Very good surface compliance
High thermal contact
Extraordinary chemical resistance and longterm stability
Residue-free removal after use

DISPONIBILITÀ

Thicknesses:
0.30 mm / 0.45 mm / 0.80 mm
Different sizes available
(See table Sizes)

ESEMPI DI APPLICAZIONE

Thermal link of:

MOSFETs or IGBTs
Power diodes or AC/DC converters

For use in Switch mode power supplies / Motor control units / Automotive engine management systems / UPS units / Solar systems

OVERVIEW

Property	Unit	TCP-J300-SI	TCP-J450-SI	TCP-J800-SI
Material		Ceramic filled silicone	Ceramic filled silicone	Ceramic filled silicone
Colour		Pink	Pink	Pink
Thickness	mm	0,30	0,45	0,80
Tensile Strength	MPa	3,2	3,2	3,2
Reißfestigkeit	kN/m	9,8	9,8	9,8
UL Flammability	UL 94	V0	V0	V0
RoHS Conformity	2015 / 863 / EU	Yes	Yes	Yes
Thermal
Resistance (@ TO-3P)	°C/W	0,68	0,95	1,60
Thermal Conductivity¹	W/mK	1,5	1,5	1,5
Operating Temperature Range	°C	- 50 bis + 200	- 50 bis + 200	- 50 bis + 200
Electric
Breakdown Voltage	kV AC	10	13	18
Volume Resistivity	Ohm - cm	3,2 x 10¹⁴	3,2 x 10¹⁴	3,2 x 10¹⁴
Dielectric Constant	@ 1 MHz	6,0	6,0	6,0
