TCP-L-SI - Silicon Caps

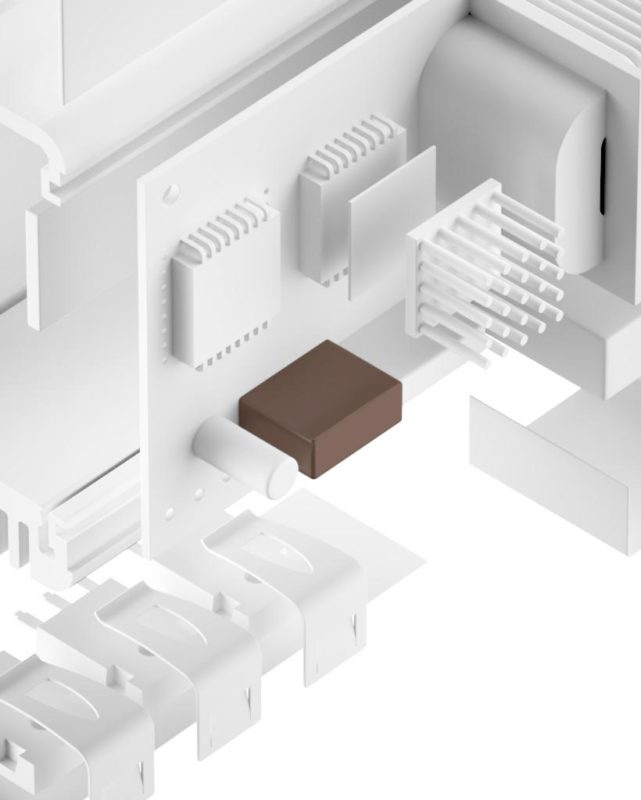

TCP-L-SI is a thermally conductive silicone cap for an optimised thermal coupling between electronic packages and heat sinks which provides for a reliable electrical all-around insulation. Through the specific formulation and filling with thermally conductive ceramic particles a very high thermal conductivity ry good compliance to the contact surfaces. Thus the total thermal resistance is minimised.



PROPRIETÀ

  • Thermal conductivity: 2.0 W/mK
  • Very good surface compliance
  • High thermal contact
  • Extraordinary chemical resistance and longterm stability
  • Residue-free removal after use

DISPONIBILITÀ

  • Thicknesses:
    0.30 mm / 0.45 mm / 0.80 mm
  • Different sizes available
    (See table Sizes)

ESEMPI DI APPLICAZIONE

Thermal link of:

  • MOSFETs or IGBTs
  • Power diodes or AC/DC converters

For use in Switch mode power supplies / Motor control units / Automotive engine management systems / UPS units / Solar systems

OVERVIEW

PropertyUnitTCP-L300-SITCP-L450-SITCP-L800-SI
MaterialCeramic filled siliconeCeramic filled siliconeCeramic filled silicone
ColourBrownBrownBrown
Thicknessmm0,300,450,80
Tensile Strengthkpsi0.440.440.44
Tear StrengthkN/m6.06.06.0
UL FlammabilityUL 94V0V0V0
RoHS Conformity2015 / 863 / EUYesYesYes
Thermal
Resistance (@ TO-3P)°C/W0.40.61.1
Thermal Conductivity1W/mK2.02.02.0
Operating Temperature Range°C- 50 bis + 200- 50 bis + 200- 50 bis + 200
Electrical
Breakdown VoltagekV AC5712
Volume ResistivityOhm - cm3.5 x 10143.5 x 10143.5 x 1014
Dielectric Constant@ 1 MHz6.26.26.2
