TFO-J-SI Silikonfolie glasfaserverstärkt

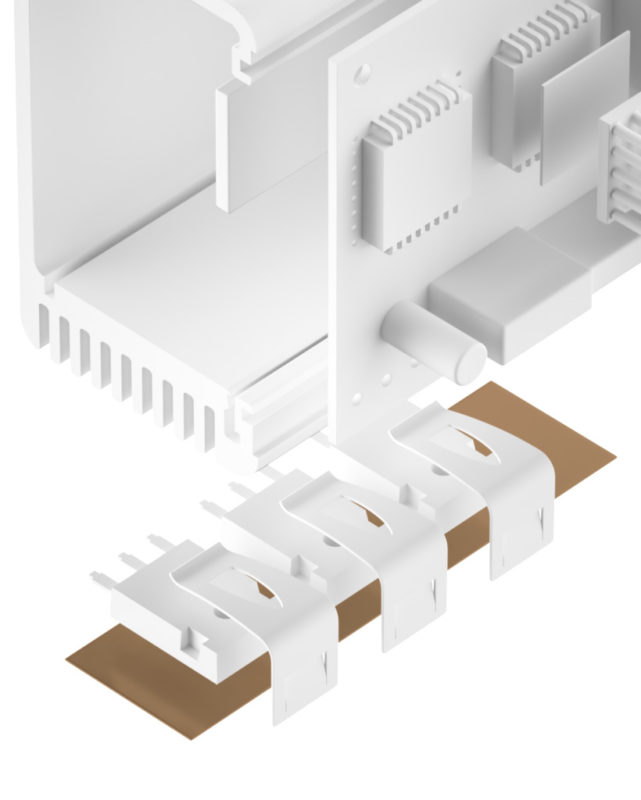

TFO-J-SI is an electrically insulating thermally conductive silicone foil for an optimised thermal coupling between electronic packages and heat sinks. Through the specific formulation and filling with thermally conductive ceramic particles a high thermal conductivity is reached. Under pressure the total thermal resistance is minimised. The material is characterised by its very high dielectric properties. The fibreglass reinforcement provides for an outstanding mechanic stability and cut-through resistance as well as easy handling. For an easy and reliable pre-assembly the interface material is available with low tack pressure sensitive adhesive on one side.




PROPRIETÀ

  • Thermal conductivity: 2.0 W/mK
  • High thermal contact
  • Outstanding mechanic stability through fibreglass reinforcement
  • Very high dielectric strength
  • Extraordinary chemical resistance and longterm stability
  • Residue-free removal after use

DISPONIBILITÀ

  • Sheet
  • Roll 300 mm x 50 m (0.20 / 0.30 mm)
  • Roll 300 mm x 25 m (0.45 mm)
  • Non tacky
    (TFO-JXXX-SI)
  • Tacky on one side
    (TFO-JXXX-SI-A1)
  • Die cut parts
  • Kiss cut parts on roll
  • Kiss cut parts on sheet

ESEMPI DI APPLICAZIONE

Thermal link of:

  • MOSFETs or IGBTs
  • Power diodes or AC/DC converters
  • Power modules

For use in Switch mode power supplies / Motor control units / High voltage hybrid automotive applications / PS units / Solar systems

OVERVIEW

PropertyUnitTFO-J200-SITFO-J300-SITFO-J450-SI
MaterialCeramic filled siliconeCeramic filled siliconeCeramic filled silicone
ColourDunkelbraunDunkelbraunDunkelbraun
ReinforcementFibreglassFibreglassFibreglass
Thicknessmm0,20±0,050,30±0,050,45±0,05
Tensile Strength1kpsi5.84.02.9
UL FlammabilityUL 94V0V0V0
RoHS Conformity2015 / 863 / EUYesYesYes
Thermal
Resistances2 @ 150 PSI°C-inch²/W0,310,450,63
Resistance2 @ 30 PSI°C-inch²/W0,610,740,96
Thermal ConductivityW/mK2,02,02,0
Operating Temperature Range°C- 40 bis + 180- 40 bis + 180- 40 bis + 180
Electric
Breakdown Voltage3kV AC5.07.010.0
Volume ResistivityOhm - cm4.2 x 10143.5 x 10143.8 x 1014
Dielectric Constant@ 1 MHz3.84.24.3
