TFO-O-SI
CONTATTI DOWNLOADS TFO-O-SI Data Sheet Ordine di campionaruraTFO-O-SI is an electrically insulating thermally conductive silicone foil for an optimised thermal coupling between electronic packages and heat sinks. Through the specific formulation and filling with thermally conductive ceramic particles a very high thermal conductivity is reached. Under pressure the total thermal resistance is minimised. The material is characterised by its very high dielectric properties. The fibreglass reinforcement provides for an outstanding mechanic stability and cut-through resistance as well as easy handling. For an easy and reliable pre-assembly the interface material is available with low tack pressure sensitive adhesive on one side.
PROPRIETÀ
- Thermal conductivity: 3.0 W/mK
- High thermal contact
- Outstanding mechanic stability through fibreglass reinforcement
- Very high dielectric strength
- Extraordinary chemical resistance and longterm stability
- Residue-free removal after use
DISPONIBILITÀ
- Sheet
- Roll 300 mm x 50 m (0.20 / 0.30 mm)
- Roll 300 mm x 25 m (0.45 mm)
- Non tacky
(TFO-OXXX-SI) - Tacky on one side
(TFO-OXXX-SI-A1) - Die cut parts
- Kiss cut parts on roll
- Kiss cut parts on sheet
ESEMPI DI APPLICAZIONE

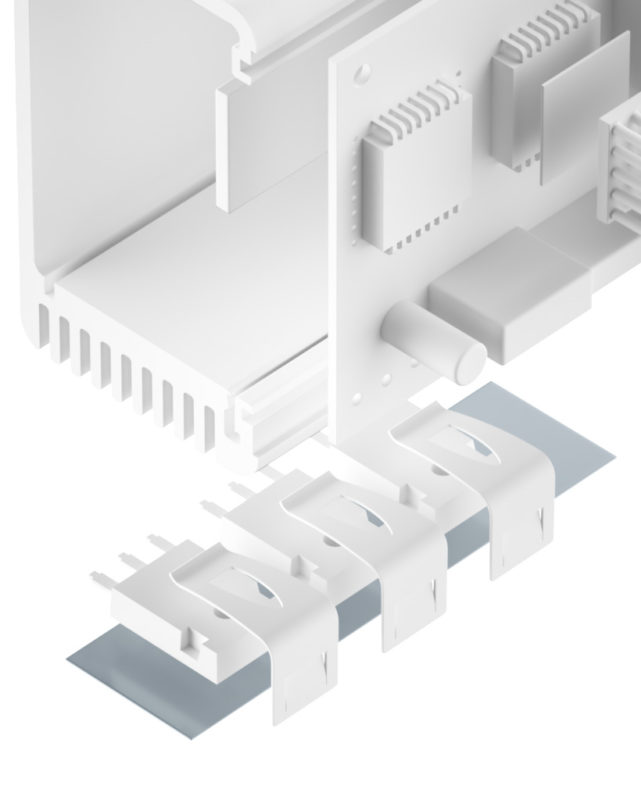

Thermal link of:
- MOSFETs or IGBTs
- Power diodes or AC/DC converters
- Power modules
For use in Switch mode power supplies / Motor control units / High voltage hybrid automotive applications / PS units / Solar systems
OVERVIEW
Property | Unit | TFO-O200-SI | TFO-O300-SI | TFO-O450-SI |
---|---|---|---|---|
Material | Ceramic filled silicone | Ceramic filled silicone | Ceramic filled silicone | |
Colour | Grey | Grey | Grey | |
Reinforcement | Fibreglass | Fibreglass | Fibreglass | |
Thickness | mm | 0,20±0,05 | 0,30±0,05 | 0,45±0,05 |
Tensile Strength1 | kpsi | 3.3 | 2.3 | 1.6 |
UL Flammability | UL 94 | V0 | V0 | V0 |
RoHS Conformity | 2015 / 863 / EU | Yes | Yes | Yes |
Thermal | ||||
Resistances2 @ 150 PSI | °C-inch²/W | 0,22 | 0,30 | 0,38 |
Resistance2 @ 30 PSI | °C-inch²/W | 0,55 | 0,60 | 0,70 |
Thermal Conductivity | W/mK | 3,0 | 3,0 | 3,0 |
Operating Temperature Range | °C | - 40 bis + 180 | - 40 bis + 180 | - 40 bis + 180 |
Electric | ||||
Breakdown Voltage3 | kV AC | 5.0 | 7.0 | 8.0 |
Volume Resistivity | Ohm - cm | 9.2 x 1013 | 8.8 x 1013 | 3,4 x 1012 |
Dielectric Constant | @ 1 MHz | 4.8 | 5.6 | 6.2 |
