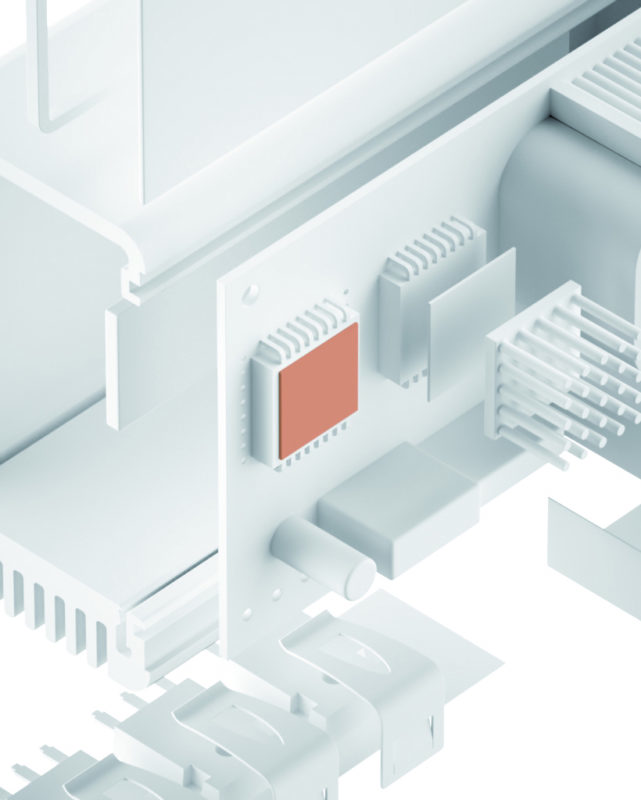

TPC-N-PI is a thermally conductive film with an electrically insulator made of Devinall TH Polyimide which is coated with a thermally conductive phase changing compound on both sides thus optimising the thermal path e.g. between electronic packages and heat sinks. During warm-up the phase change coating starts filling up surface-specific roughnesses and unevenesses and expels any air enclosures from micro structures even at low pressure. The wettening of the contact areas is further on improved by volumetric material expansion of approximately 10 to 15% at increasing temperature. Thus the total thermal resistance is minimised. The material is characterised by its very high dielectric properties.
PROPRIETÀ
- Optimal thermal contact
- High dielectric strength
- Silicone-free
- No dry up, pump-out migration
- No run-out through thixotropic properties
- Process reliable coating thickness
- Ideal replacement of messy thermal grease
DISPONIBILITÀ
- Sheet 305 x 495 / 610 x 495 mm
- Roll 495 mm x 152 m
- Non tacky (TPC-NXXX-PI)
- Tacky on one side with PSA
(TPC-NXXX-PI-A1) - With adhesive strips on request
- Thicker phase coating (25 μm)
- Die cut parts
- Kiss cut parts
ESEMPI DI APPLICAZIONE
Thermal link of:
- MOSFETs or IGBTs
- Diodes
- A.C. converter
- Uninsulated power modules
For use in Automotive motor control units / Power supplies / Traction drives / Telecom appliances
OVERVIEW
| Property | Unit | TPC-N051-PI | TPC-N077-PI | TPC-N102-PI |
|---|---|---|---|---|
| Material | Devinall TH Polyimidfilm mit Phase-Change Beschichtung | Devinall TH Polyimidfilm mit Phase-Change Beschichtung | Devinall TH Polyimidfilm mit Phase-Change Beschichtung | |
| Colour | Light orange | Light orange | Light orange | |
| Thikness Devinall TH | μm | 25±4 | 51±8 | 77±12 |
| Thickness Phase Change (per side) | μm | 13 | 13 | 13 |
| Total Thickness | μm | 51 | 77 | 102 |
| Tensile Strength | MPa | 136 | 136 | 136 |
| UL Flammability Devinall TH (Equivalent) | UL 94 | V0 | V0 | V0 |
| RoHS Conformity | 2015 / 863 / EU | Yes | Yes | Yes |
| Thermal | ||||
| Resistances1 @ 150 PSI | °C-inch²/W | 0,126 | 0,215 | 0,311 |
| Resistances1 @ 30 PSI | °C-inch²/W | 0,130 | 0,220 | 0,315 |
| Resistance2 @ 10 PSI @ Thickness | °C-inch²/W | 0,143 | 0,237 | 0,332 |
| Thermal Conductivity Devinall TH | W/mK | 0,36 | 0,36 | 0,36 |
| Phase-Change Temperatur | °C | ca. 60 | ca. 60 | ca. 60 |
| Electric | ||||
| Breakdown Voltage | kV AC | 5,4 | 9,0 | 13,5 |
| Volume Resistivity | Ohm - cm | 1,0 x 1016 | 1,0 x 1016 | 1,0 x 1016 |
| Dielectric Constant | @ 25 °C | 4,0 | 4,0 | 4,0 |
