TGF-V-NS Silikonfreier Gap Filler weich

TGF-V-NS is an electrically insulating extremely thermally conductive silicone-free gap filler. It is ideal for use in applications where thermal transfer over large gaps caused e.g. by big tolerances or different stack up heights must be achieved. The acrylate based elastomer does not contain any volatile siloxanes which are inevitably emitted by silicones. Due to the specific formulation and filling with ceramic particles the material has an extremely high thermal conductivity. Through its softness the material perfectly mates to irregular surfaces thus filling gaps and operates at low pressure. By its use the total thermal resistance is minimised. The natural tackiness of the material allows for an easy and reliable pre-assembly. The material is double-side tacky or alternatively one-side tacky through lamination with a transparent film.




PROPRIETÀ

  • Silicone-free acrylate
  • No emission of volatile siloxanes
  • Soft and compliable
  • Thermal conductivity: 5 W/mK
  • Shock absorbing
  • Easy mounting through self-tackiness
  • One or two-side self tacky

DISPONIBILITÀ

  • Sheet 510 x 210 mm
  • Double-side tacky
    (TGF-VXXXX-NS) ≥1.0 mm
  • Tacky on one side by film laminate
    (TGF-VXXXX-NS-F) ≥ 0.5 mm
  • Die cut parts
  • Kiss cut parts on sheet

ESEMPI DI APPLICAZIONE

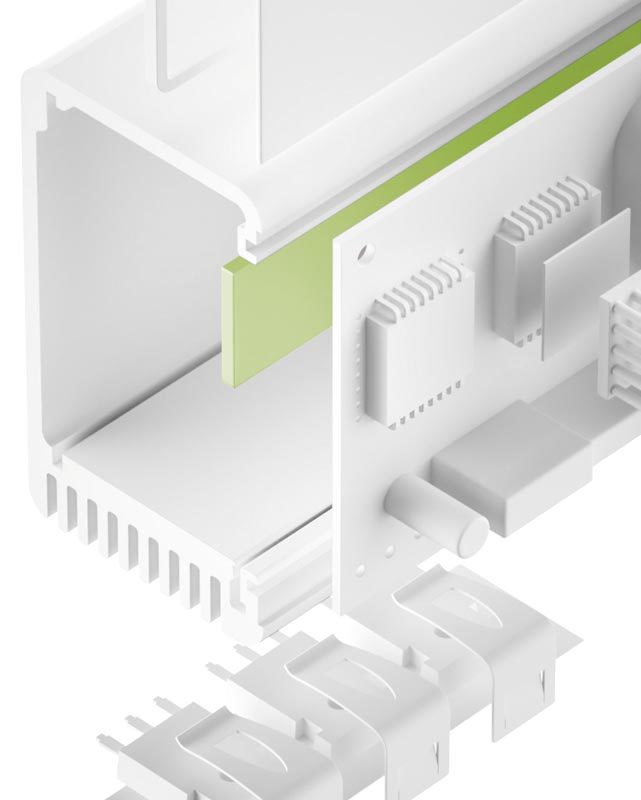

Thermal link of

  • SMD packages
  • Through-hole vias
  • RDRAMs memory modules
  • Electronic parts to heat pipes

For use in Automotive applications / Laptops / Medicine engineering / Industrial PCs

OVERVIEW

PropertyUnitTGF-V1000-NSTGF-V2000-NSTGF-V3000-NSTGF-V4000-NS
MaterialCeramic filled silicone-free acrylic elastomerCeramic filled silicone-free acrylic elastomerCeramic filled silicone-free acrylic elastomerCeramic filled silicone-free acrylic elastomer
ColourHellgrünHellgrünHellgrünHellgrün
Thicknessmm1,02,03,04,0
Specific Gravityg/cm³2,892,892,892,89
HardnessShore 0064646464
UL FlammabilityUL 94V0V0V0V0
RoHS Conformity2015 / 863 / EUYesYesYesYes
Thermal
Resistance1 @ 60 PSI @ Thickness°C-inch²/W (mm)0,42 (0,89)0,73 (1,89)0,93 (2,57)1,25 (3,50)
Resistance1 @ 30 PSI @ Thickness°C-inch²/W (mm)0,45 (0,93)0,77 (1,93)1,01 (2,72)1,33 (3,70)
Resistance1 @ 10 PSI @ Thickness°C-inch²/W (mm)0,47 (0,96)0,83 (1,97)1,11 (2,86)1,44 (3,90)
Thermal ConductivityW/mK5,05,05,05,0
Operating Temperature Range°C- 40 bis + 125- 40 bis + 125- 40 bis + 125- 40 bis + 125
Electric
Dielectric StrengthkV / mm1,21,21,21,2
Volume ResistivityOhm - cm1,0 x 10111,0 x 10111,0 x 10111,0 x 1011
Dielectric Constant@ 1 MHz18,218,218,218,2
