TEL-ZS-SI

TEL-YSS-SI Silikon Gap Filler hoch thermisch leitfähig

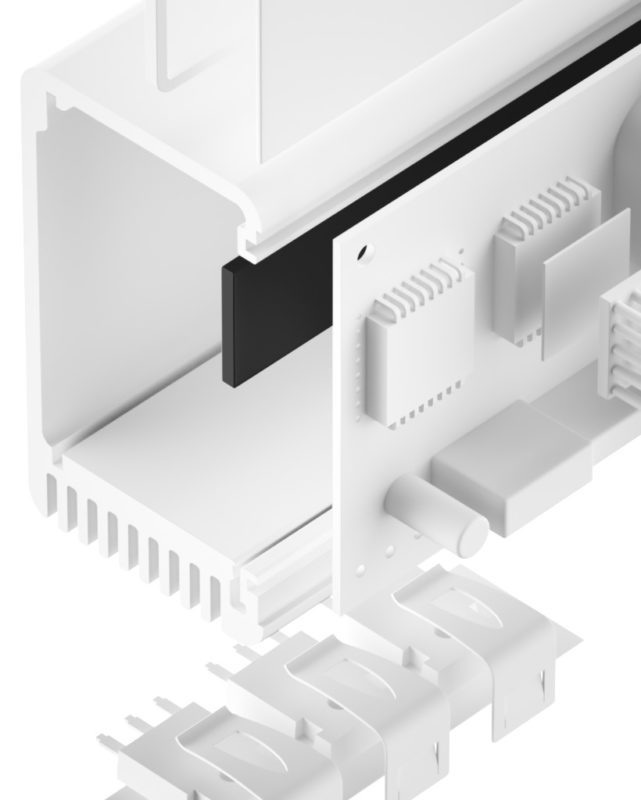

TEL-ZS-SI is a non dielectric high performance thermally conductive LV silicone foil for an optimised thermal coupling between electronic packages and heat sinks even over large gaps or big tolerances.Through the specific formulation and filling an extraordinary high anisotropic thermal conductivity is reached. Its conformal surface structure and high softness guarantee a very good compliance to the contact surfaces at low pressure. Thus the total thermal resistance is minimised.

PROPRIETÀ
  • High surface compliance and softness
  • Low volatile siloxane content (LV)
  • Non dielectric
  • Thermal conductivity: 20 W/mK (anisotropic)
  • Extraordinary chemical resistance and longterm stability
  • Shock absorbing
DISPONIBILITÀ
  • Sheet 120 x 120 mm
    (TEL-ZSXXXX-SI)
  • Die cut parts
  • Optional with adhesive stripes or dots
    (TEL-ZSXXXX-SI-A1)
ESEMPI DI APPLICAZIONE

Thermal link of:

  • MOSFETs or IGBTs
  • Power diodes or AC/DC converters
  • Power modules

For use in Switch mode power supplies / Motor control units / Automotive engine management systems / UPS units / Solar systems

OVERVIEW
PropertyUnitTEL-ZS0200-SITEL-ZS0500-SI
MaterialCarbon filled silicone elastomereCarbon filled silicone elastomere
ColourBlackBlack
Thicknessmm0,2±0,050,5±0,05
HardnessShore 006060
UL FlammabilityUL 94V0V0
RoHS Conformity2015 / 863 / EUYesYes
Thermal
Resistance1 @ 35 PSI @ Thickness°C-inch²/W (mm)0,007 (0,17)0,018 (0,44)
Resistance1 @ 15 PSI @ Thickness°C-inch²/W (mm)0,017 (0,18)0,027 (0,48)
Resistance1 @ 7 PSI @ Thickness°C-inch²/W (mm)0,030 (0,19)0,042 (0,49)
Thermal Conductivity1W/mK2020
Operating Temperature Range°C- 40 bis + 150- 50 bis + 150
Electric
Volume ResistivityOhm - cm< 50.000< 50.000

/
