TPC-P-KA Poyimid Film Phase Change beschichtet

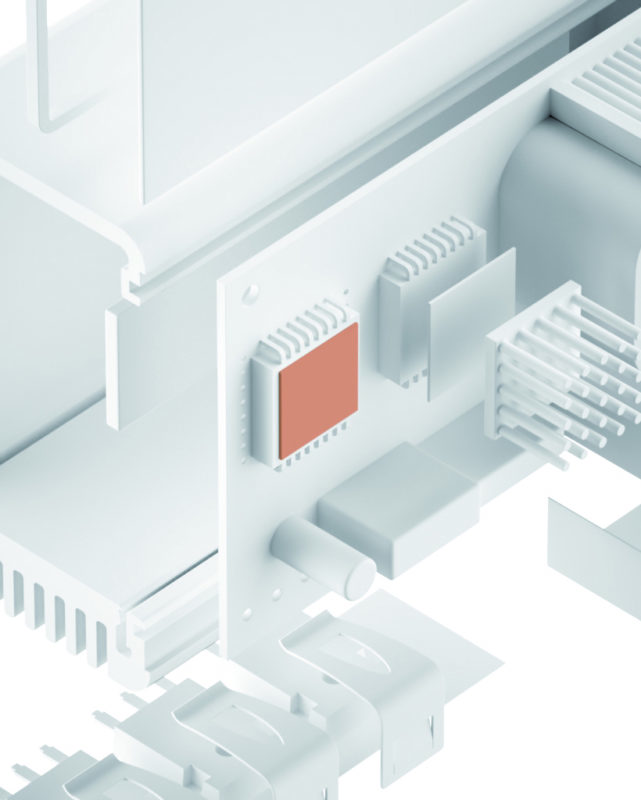

TPC-P-KA is a thermally conductive film with an electrically insulator made of Kapton®MT which is coated with a thermally conductive phase changing compound on both sides thus optimising the thermal path e.g. between electronic packages and heat sinks. During warm-up the phase change coating starts filling up surface-specific roughnesses and unevenesses and expels any air enclosures from micro structures even at low pressure. The wettening of the contact areas is further on improved by volumetric material expansion of approximately 10 to 15% at increasing temperature. Thus the total thermal resistance is minimised. The material is characterised by its very high dielectric properties.


  • Optimal thermal contact
  • High dielectric strength
  • Silicone-free
  • No dry up, pump-out migration
  • No run-out through thixotropic properties
  • Process reliable coating thickness
  • Ideal replacement of messy thermal grease


  • Sheet 305 x 394 / 610 x 394 mm
  • Roll 394 mm x 152 m
  • Non tacky (TPC-PXXX-KA)
  • Tacky on one side with PSA
  • With adhesive strips on request
  • Thicker phase coating (25 μm)
  • Die cut parts
  • Kiss cut parts


Thermal link of:

  • MOSFETs or IGBTs
  • Diodes
  • A.C. converter
  • Uninsulated power modules

For use in Automotive motor control units / Power supplies / Traction drives / Telecom appliances


MaterialKapton®MT with phase change coating on both sidesKapton®MT with phase change coating on both sidesKapton®MT with phase change coating on both sides
ColourLight orangeLight orangeLight orange
Thickness Kapton®MTμm25±451±877±12
Thickness Phase Change (per side)μm131313
Total Thicknessμm5177102
Tensile Strength1MPa138152159
UL FlammabilityUL 94V0V0V0
RoHS Conformity2015 / 863 / EUYesYesYes
Resistances2 @ 150 PSI°C-inch²/W0.1100.1950.285
Resistance2 @ 30 PSI°C-inch²/W0.1130.2000.290
Resistance2 @ 10 PSI°C-inch²/W0.1250.2130.300
Thermal Conductivity Kapton®MTW/mK0.450.450.45
Phase-Change Temperatur°Cca. 60ca. 60ca. 60
Breakdown Voltage3kV AC5.59.212.3
Volume ResistivityOhm - cm1.0 x 10141.0 x 10141.0 x 1014
Dielectric Constant@ 1 MHz4.24.24.2
